Pinholes

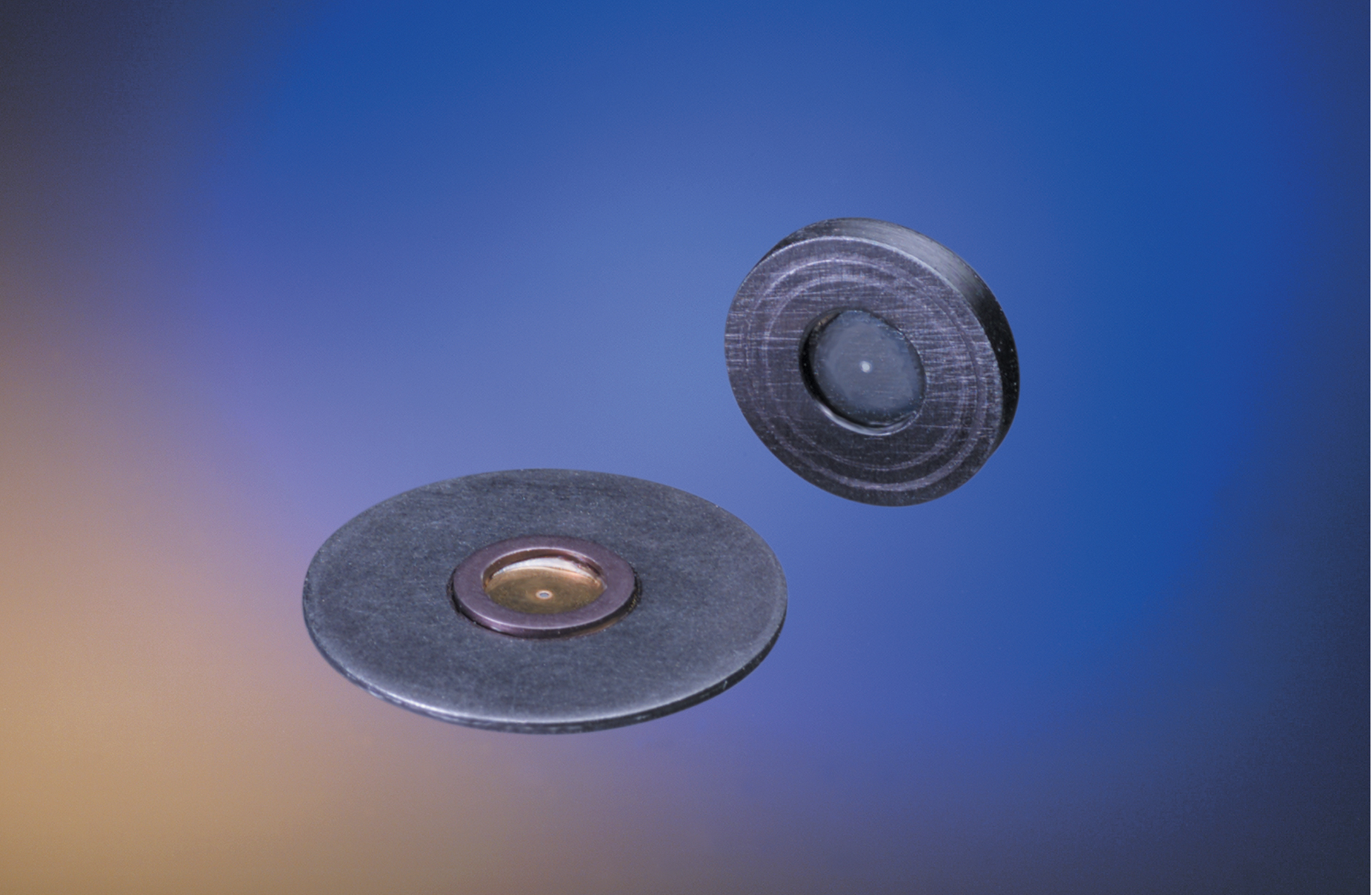

Ealing laser pinhole apertures are available with diameters from 1 to 1000 microns. They are supplied mounted in either 16mm or 25mm round mounts. Pinholes can also be offered unmounted. Please contact us for details.

Precision Pinholes

Part #	Product Description	Price	In Stock
43-5180-000	∅25 mm Mount, 2.5 μm Aperture, Precision Pinhole	$79.00	Yes
43-5024-000	∅16 mm Mount, 5.0 μm Aperture, Precision Pinhole	$65.00	Out of Stock
43-5198-000	∅25 mm Mount, 5.0 μm Aperture, Precision Pinhole	$65.00	Yes
43-5206-000	∅25 mm Mount, 10.0 μm Aperture, Precision Pinhole	$54.00	Yes
43-5040-000	∅16 mm Mount, 12.5 μm Aperture, Precision Pinhole	$54.00	Yes
43-5214-000	∅25 mm Mount, 12.5 μm Aperture, Precision Pinhole	$54.00	Yes
43-5222-000	∅25 mm Mount, 15.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5230-000	∅25 mm Mount, 17.5 μm Aperture, Precision Pinhole	$49.00	Yes
43-5073-000	∅16 mm Mount, 25.0 μm Aperture, Precision Pinhole	$49.00	Out of Stock
43-5248-000	∅25 mm Mount, 25.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5081-000	∅16 mm Mount, 35.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5255-000	∅25 mm Mount, 35.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5099-000	∅16 mm Mount, 50.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5263-000	∅25 mm Mount, 50.0 μm Aperture, Precision Pinhole	$49.00	Out of Stock
43-5289-000	∅25 mm Mount, 100.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5305-000	∅25 mm Mount, 400.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5149-000	∅16 mm Mount, 600.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5313-000	∅25 mm Mount, 600.0 μm Aperture, Precision Pinhole	$49.00	Out of Stock
43-5321-000	∅25 mm Mount, 800.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5164-000	∅16 mm Mount, 1000.0 μm Aperture, Precision Pinhole	$49.00	Yes

High Power UV/Visible Laser Pinholes (Molybdenum)

Part #	Product Description	Price	In Stock
43-5347-000	∅16 mm Mount, 2.0 μm Aperture, UV/Visible Laser Pinholes	$95.00	Yes
43-5487-000	∅25 mm Mount, 2.0 μm Aperture, UV/Visible Laser Pinholes	$95.00	Out of Stock
43-5362-000	∅16 mm Mount, 10.0 μm Aperture, UV/Visible Laser Pinholes	$80.00	Yes
43-5503-000	∅25 mm Mount, 10.0 μm Aperture, UV/Visible Laser Pinholes	$80.00	Yes
43-5370-000	∅16 mm Mount, 15.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5388-000	∅16 mm Mount, 20.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5537-000	∅25 mm Mount, 25.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5404-000	∅16 mm Mount, 35.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5545-000	∅25 mm Mount, 35.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5412-000	∅16 mm Mount, 50.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5552-000	∅25 mm Mount, 50.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5578-000	∅25 mm Mount, 70.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5461-000	∅16 mm Mount, 100.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5602-000	∅25 mm Mount, 100.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5479-000	∅16 mm Mount, 200.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5610-000	∅25 mm Mount, 200.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes

High Power Infrared Laser Pinholes (Gold/Copper)

Part #	Product Description	Price	In Stock
43-5636-000	∅16 mm, 10.0 μm, Infrared Laser Pinhole	$98.00	Yes
43-5776-000	∅25 mm, 10.0 μm, Infrared Laser Pinhole	$98.00	Yes
43-5644-000	∅16 mm, 25.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5784-000	∅25 mm, 25.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5651-000	∅16 mm, 35.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5685-000	∅16 mm, 70.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5693-000	∅16 mm, 80.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5842-000	∅25 mm, 90.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5701-000	∅16 mm, 90.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5719-000	∅16 mm, 100.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5859-000	∅25 mm, 100.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5727-000	∅16 mm, 200.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5867-000	∅25 mm, 200.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5875-000	∅25 mm, 300.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5743-000	∅16 mm, 400.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5883-000	∅25 mm, 400.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5750-000	∅16 mm, 500.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5891-000	∅25 mm, 500.0 μm, Infrared Laser Pinhole	$72.00	Yes
