Motion Control

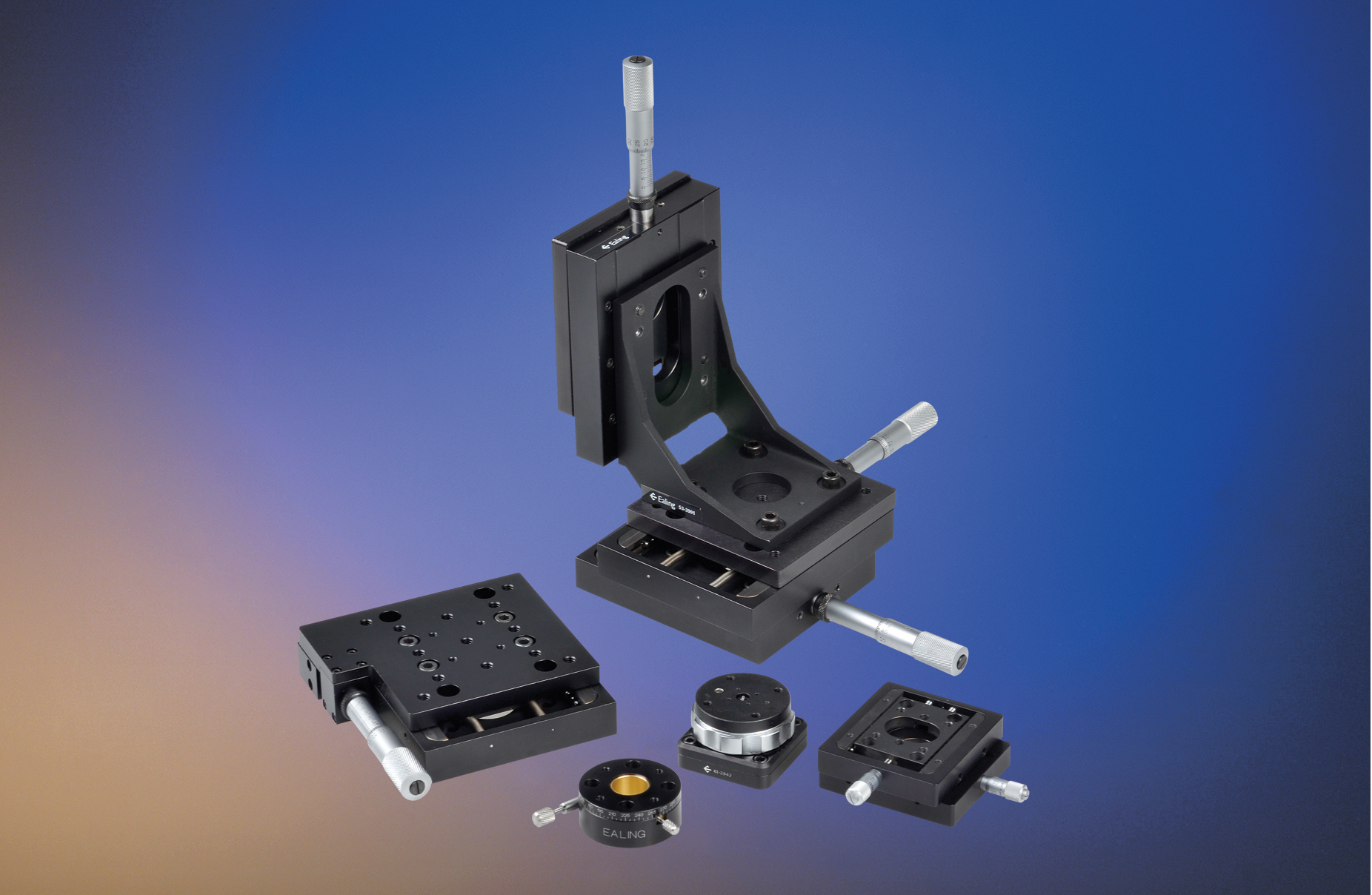

Ealing carries a variety of optical stages and motorized solutions to suit your research and industrial needs.

•Rotational Stages with 360˚ coarse, 6˚ fine tuning
•Tilt Stages providing a controlled angular displacement of ±3.75 degrees.
•Elevation Stages with 5 mm of Vertical Travel
•X, XY, and XYZ Linear Stages (Manual and Motorized Solutions Available)
•Motorized Linear Actuators for accurate positioning

Linear Translation Stages

Part #	Product Description	Price	In Stock
72-0014-001	6.5 mm Travel, Thumbscrew Actuator, Metric (30mm Wide)	$188.00	Yes
72-0006-000	6.5 mm Travel, Micrometer Actuator, Metric (30mm Wide)	$230.00	Yes
72-0030-000	6.5 mm Travel, Thumbscrew Actuator, Metric Top Plate (30mm wide)	$207.90	Yes
72-0022-000	6.5 mm Travel, Micrometer Actuator, Metric Top Plate (30mm Wide)	$252.00	Yes
72-0113-000	Angle Bracket for 6.5mm Travel Stage (Mini Stage), Short, Metric Hole Pattern	$49.35	Yes
72-0121-000	Angle Bracket for 6.5mm Travel Stage (Mini Stage), Long, Metric Hole Pattern	$60.90	Yes
74-0006-000	12.7 mm Travel, Thumbscrew Actuator, Metric	$278.00	Yes
74-0014-000	6.5 mm Travel, Micrometer Actuator, Metric	$337.00	Yes
61-0006-000	12.7 mm Travel, Thumbscrew Actuator, Inch	$278.00	Yes
61-0014-000	6.5 mm Travel, Micrometer Actuator, Inch	$337.00	Yes
74-3125-000	12.7 mm Travel, Thumbscrew Actuator, Metric Top Plate	$327.00	Yes
74-3158-000	6.5 mm Travel, Micrometer Actuator, Metric Top Plate	$358.00	Yes
61-3125-000	12.7 mm Travel, Thumbscrew Actuator, Inch Top Plate	$327.00	Yes
61-3158-000	6.5 mm Travel, Micrometer Actuator, Inch Top Plate	$358.00	Yes
74-3166-000	Top Plate for 6.5mm or 12.7mm Travel Stage, M4 Metric Hole Pattern	$49.35	Out of Stock
61-3166-000	Top Plate for 6.5mm or 12.7mm Travel Stage, 8-32 Inch Hole Pattern	$49.35	Yes
53-0303-000	25 mm Travel, Micrometer Actuator, End Driven, Metric	$355.00	Yes
74-3182-000	25 mm Travel, Micrometer Actuator, End Driven, Metric Top Plate	$385.00	Out of Stock
61-3182-000	25 mm Travel, Micrometer Actuator, End Driven, Inch Top Plate	$385.00	Yes
74-3190-000	25 mm Travel, Micrometer Actuator, Side Driven, Metric Top Plate	$385.00	Yes
61-3190-000	25 mm Travel, Micrometer Actuator, Side Driven, Inch Top Plate	$385.00	Yes
53-0329-000	50 mm Travel, Micrometer Actuator, End Driven, Metric	$650.00	Yes
74-3208-000	50mm Travel, Micrometer Actuator, End Driven, Metric Top Plate	$694.00	Out of Stock
61-3208-000	50mm Travel, Micrometer Actuator, End Driven, Inch Top Plate	$694.00	Out of Stock
74-3216-000	50 mm Travel, Micrometer Actuator, Side Driven, Metric Top Plate	$735.00	Out of Stock
61-3216-000	50 mm Travel, Micrometer Actuator, Side Driven, Inch Top Plate	$735.00 As low as: $735.00	Out of Stock
61-0089-000	Wide Base Plate, Adjustable, Inch	$38.00	Yes
61-3828-000	Slotted Base Plate, Inch	$35.00	Yes
74-0089-000	Wide Base Plate Adjustable, Metric	$38.00	Yes
03-203-003	USB Motor Controller	$345.00	Yes
02-805-001	2-Axis Stage, 6.5 mm Travel, Micrometer Actuators, Metric, (30 mm x 30 mm)	$482.00	Out of Stock
02-805-002	2-Axis Stage, 6.5 mm Travel, Thumbscrew Actuators, Metric, (30 mm x 30 mm)	$395.00	Out of Stock
02-805-003	2-Axis Stage, 6.5 mm Travel, Micrometer Actuators, Inch, (62.5 mm x 62.5 mm)	$464.10	Out of Stock
02-805-004	2-Axis Stage, 6.5 mm Travel, Micrometer Actuators, Metric, (62.5 mm x 62.5 mm)	$464.10	Out of Stock
02-805-006	2-Axis Stage, 12.7 mm Travel, Thumbscrew Actuators, Metric	$451.50	Out of Stock
02-805-005	2-Axis Stage, 12.7 mm Travel, Thumbscrew Actuators, Inch	$451.10	Out of Stock
02-805-007	2-Axis Stage, 25 mm Travel, Micrometer Actuators, End Driven, Inch	$740.00	2-4 Week Lead Time
02-805-008	2-Axis Stage, 25 mm Travel, Micrometer Actuators, Side Driven, Metric	$770.00	Out of Stock
02-805-009	2-Axis Stage, 25 mm Travel, Micrometer Actuators, Side Driven, Inch	$770.00	Ships in 1-2 Weeks
02-805-010	2-Axis Stage, 25 mm Travel, Micrometer Actuators, End Driven, Metric	$740.00	Ships in 3-4 Weeks
02-805-011	2-Axis Stage, 50 mm Travel, Micrometer Actuators, End Driven, Inch	$970.00	Out of Stock
02-805-012	2-Axis Stage, 50 mm Travel, Micrometer Actuators, End Driven, Metric	$970.00	Out of Stock
02-805-013	2-Axis Stage, 50 mm Travel, Micrometer Actuators, Side Driven, Inch	$1,020.00	Out of Stock
02-805-014	2-Axis Stage, 50 mm Travel, Micrometer Actuators, Side Driven, Metric	$1,020.00	Out of Stock
02-807-003	3-Axis Stage, 6.5 mm Travel, Micrometer Actuators, Metric (30 mm x 30 mm)	$761.35	Ships in 1-3 Weeks
02-807-004	3-Axis Stage, 6.5 mm Travel, Thumbscrew Actuators, Metric (30 mm x 30 mm)	$633.25	Ships in 1-2 Weeks
02-807-007	3-Axis Stage, 25 mm Travel, Micrometer Actuators, Side Driven, Inch	$1,254.75	Out of Stock
02-807-008	3-Axis Stage, 25 mm Travel, Micrometer Actuators, Side Driven, Metric	$1,254.75	Out of Stock
02-807-011	3-Axis Stage, 50 mm Travel, Micrometer Actuators, Side Driven, Inch	$1,629.75	Ships in 1-3 Weeks
02-807-012	3-Axis Stage, 50 mm Travel, Micrometer Actuators, Side Driven, Metric	$1,629.75	Ships in 3-5 Weeks
03-0201-001	Motorized Single Axis Stage, 6.5 mm Travel, Metric (30 mm X 30 mm)	$826.00	Out of Stock
03-0201-004	Motorized Single Axis Stage, 10 mm Travel, Inch	$854.00	Out of Stock
03-0201-005	Motorized Single Axis Stage, 10 mm Travel, Metric	$854.00	Ships in 2-5 days
03-0201-006	Motorized Single Axis Stage, 25 mm Travel, End Driven, Inch	$883.00	Ships in 1-2 Weeks
03-0201-007	Motorized Single Axis Stage, 25 mm Travel, End Driven, Metric	$883.00	Out of Stock
03-0201-008	Motorized Single Axis Stage, 25 mm Travel, Side Driven, Inch	$883.00	Ships in 1-2 Weeks
03-0201-009	Motorized Single Axis Stage, 25 mm Travel, Side Driven, Metric	$883.00	Out of Stock
03-0201-010	Motorized Single Axis Stage, 50mm Travel, End Driven, Inch	$1,043.00	Out of Stock
03-0201-011	Motorized Single Axis Stage, 50mm Travel, End Driven, Metric	$1,043.00	Out of Stock
03-0201-012	Motorized Single Axis Stage, 50 mm Travel, Side Driven, Inch	$1,043.00	Out of Stock
03-0201-013	Motorized Single Axis Stage, 50 mm Travel, Side Driven, Metric	$1,043.00	Out of Stock
03-0201-014	Motorized Single Axis Stage, 6.5 mm Travel, Linear Actuator w/ Encoder, Metric (30 mm X 30 mm)	$1,105.00	Out of Stock
03-0201-017	Motorized Single Axis Stage, 10 mm Travel, Linear Actuator w/ Encoder, Inch	$1,227.00	Out of Stock
03-0201-018	Motorized Single Axis Stage, 10 mm Travel, Linear Actuator w/ Encoder, Metric	$1,227.00	Ships in 2-5 days
03-0201-019	Motorized Single Axis Stage, 25 mm Travel, Linear Actuator w/ Encoder, End Driven, Inch	$1,173.00	Ships in 1-2 Weeks
03-0201-020	Motorized Single Axis Stage, 25 mm Travel, Linear Actuator w/ Encoder, End Driven, Metric	$1,173.00	Out of Stock
03-0201-021	Motorized Single Axis Stage, 25 mm Travel, Linear Actuator w/ Encoder, Side Driven, Inch	$1,100.00	Ships in 1-2 Weeks
03-0201-022	Motorized Single Axis Stage, 25 mm Travel, Linear Actuator w/ Encoder, Side Driven, Metric	$1,100.00	Ships in 1-2 Weeks
03-0201-023	Motorized Single Axis Stage, 50mm Travel, Linear Actuator w/ Encoder, End Driven, Inch	$1,415.00	Out of Stock
03-0201-024	Motorized Single Axis Stage, 50mm Travel, Linear Actuator w/ Encoder, End Driven, Metric	$1,415.00	Out of Stock
03-0201-025	Motorized Single Axis Stage, 50 mm Travel, Linear Actuator w/ Encoder, Side Driven, Inch	$1,415.00	Out of Stock
03-0201-026	Motorized Single Axis Stage, 50 mm Travel, Linear Actuator w/ Encoder, Side Driven, Metric	$1,415.00	Out of Stock
03-0207-001	2-Axis Stage, 6.5 mm travel, Motorized, Metric (30 mm x 30 mm)	$1,639.00	Out of Stock
03-0207-004	2-Axis Stage, 10 mm Travel, Motorized, Inch	$1,659.00	Out of Stock
03-0207-005	2-Axis Stage, 10 mm Travel, Motorized, Metric	$1,659.00	Out of Stock
03-0207-006	2-Axis Stage, 25 mm Travel, End Driven, Motorized, Inch	$1,659.00	Ships in 1-3 Weeks
03-0207-007	2-Axis Stage, 25 mm Travel, End Driven, Motorized, Metric	$1,659.00	Out of Stock
03-0207-008	2-Axis Stage, 25 mm Travel, Side Driven, Motorized, Metric	$1,689.00	Ships in 1-2 Weeks
03-0207-009	2-Axis Stage, 25 mm Travel, Side Driven, Motorized, Inch	$1,689.00	Ships in 1-2 Weeks
03-0207-010	2-Axis Stage, 50 mm Travel, End Driven, Motorized, Inch	$1,840.00	Out of Stock
03-0207-011	2-Axis Stage, 50 mm Travel, End Driven, Motorized, Metric	$1,840.00	Out of Stock
03-0207-012	2-Axis Stage, 50 mm Travel, Side Driven, Motorized, Inch	$1,870.00	Out of Stock
03-0207-013	2-Axis Stage, 50 mm Travel, Side Driven, Motorized, Metric	$1,870.00	Out of Stock
03-208-001	3-Axis Stage, 6.5 mm Travel, Motorized, Metric (30 mm x 30 mm)	$2,496.00	Out of Stock
03-208-004	3-Axis Stage, 25 mm Travel, Side Driven, Motorized, Inch	$2,633.00	Out of Stock
03-208-005	3-Axis Stage, 25 mm Travel, Side Driven, Motorized, Metric	$2,633.00	Out of Stock
03-208-008	3-Axis Stage, 50 mm Travel, Side Driven, Motorized, Inch	$2,959.00	Out of Stock
03-208-009	3-Axis Stage, 50 mm Travel, Side Driven, Motorized, Metric	$2,959.00	Out of Stock
03-0207-014	2-Axis Stage 6.5 mm Travel, Motorized Actuators w/ Encoder, Metric (30 mm x 30 mm)	$2,195.00	Out of Stock
03-0207-017	2-Axis Stage, 10 mm Travel, Motorized Actuators w/ Encoder, Inch	$2,226.00	Out of Stock
03-0207-018	2-Axis Stage, 10 mm Travel, Motorized Actuators w/ Encoder, Metric	$2,226.00	Out of Stock
03-0207-019	2-Axis Stage, 25 mm Travel, Motorized Actuators w/ Encoder, End Driven, Inch	$2,241.00	Ships in 1-2 Weeks
03-0207-020	2-Axis Stage, 25 mm Travel, Motorized Actuators w/ Encoder, End Driven, Metric	$2,241.00	Out of Stock
03-0207-021	2-Axis Stage, 25 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Metric	$2,271.00	Ships in 1-2 Weeks
03-0207-022	2-Axis Stage, 25 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Inch	$2,271.00	Ships in 1-2 Weeks
03-0207-023	2-Axis Stage, 50 mm Travel, Motorized Actuators w/ Encoder, End Driven, Inch	$2,635.00	Out of Stock
03-0207-024	2-Axis Stage, 50 mm Travel, Motorized Actuators w/ Encoder, End Driven, Metric	$2,635.00	Out of Stock
03-0207-025	2-Axis Stage, 50 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Inch	$2,665.00	Out of Stock
03-0207-026	2-Axis Stage, 50 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Metric	$2,665.00	Out of Stock
03-0208-010	3-Axis Stage, 6.5 mm Travel, Motorized Actuators w/ Encoder, Metric (30 mm x 30 mm)	$3,331.00	Out of Stock
03-0208-013	3-Axis Stage, 25 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Inch	$3,505.00	Out of Stock
03-0208-014	3-Axis Stage, 25 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Metric	$3,505.00	Out of Stock
03-0208-017	3-Axis Stage, 50 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Inch	$4,127.00	Out of Stock
03-0208-018	3-Axis Stage, 50 mm Travel, Motorized Actuators w/ Encoder, Side Driven, Metric	$4,127.00	Out of Stock
53-3828-000	Slotted Base Plate, Metric	$35.00	Out of Stock
61-0212-000	Compact Base Plate, Inch	$24.00	Out of Stock
74-0212-000	Compact Base Plate, Metric	$24.00	Out of Stock
02-804-002	25 mm Travel, Micrometer Actuator (Non-Locking), Side Driven, Metric Top Plate	$349.00	2-4 Week Lead Time
02-808-001	Angle Bracket for 25mm or 50mm Travel Stage, Universal	$99.75	Yes

Rotational and Tilt Stages

Part #	Product Description	Price	In Stock
74-0238-000	Manual Rotary Stage, Metric Hole Pattern	$388.50	Out of Stock
61-0238-000	Manual Rotary Stage, Inch Hole Pattern	$388.50	Yes
74-0386-000	Manual Tilting Stage, Metric Hole Pattern	$176.40	Yes
61-0386-000	Manual Tilting Stage, Inch Hole Pattern	$176.40	Out of Stock
37-0502-000	Rotary Stage, SubMini (Clearance)	$325.00 $162.50	Yes

Actuators/Adjusters

Part #	Product Description	Price	In Stock
37-0221-000	10 mm Travel Linear Actuator (fitting dia 6.0)	$616.35	Yes
37-0015-000	25 mm Travel Linear Actuator (fitting dia 12.70)	$537.60	Yes
37-0023-000	50 mm Travel Linear Actuator (fitting dia 12.70)	$537.60	Yes
37-0007-000	13 mm Travel Linear Actuator (fitting dia 9.52)	$616.35	Yes
37-9701-000	10 mm Linear Actuator (fitting dia 9.0)	$616.35	Out of Stock
37-1187-000	10 mm Linear Actuator, With Encoder (fitting dia 6.0)	$871.50	Yes
37-1179-000	13 mm Linear Actuator, With Encoder (fitting dia 9.52)	$876.75	Yes
37-1062-000	25 mm Linear Actuator, With Encoder (fitting dia 12.70)	$805.35	Yes
37-1070-000	50 mm Linear Actuator, With Encoder (fitting dia 12.70)	$937.65	Yes
37-1047-000	Extension Cable (3m) for 13, 25, 50mm Linear Actuators with Encoder	$33.00	Yes
03-203-003	USB Motor Controller	$345.00	Yes
02-504-006	Thumbscrew for TriRail Carrier (replacement)	$15.50	Yes
52-0026-000	Thumbscrew Actuator, 6.5 mm Travel	$21.00	Yes
02-504-007	Knurled Micrometer Screw, High Precision, M4, Locknut, 170 TPI, (Standard Head)	$30.00	Yes
02-504-008	Knurled Micrometer Screw, High Precision, M4, Locknut, 170 TPI (Compact Head)	$30.00	Yes
02-504-009	Differential Screw, M14 x 0.5 Fine Pitch Thread	$169.00	Yes
02-504-010	Differential Screw, M18 x 0.5 Fine Pitch Thread	$188.00	Yes
02-800-003	Micrometer, 25mm Travel, 17mm Head, 0.5mm Thread	$103.00	Out of Stock
02-800-004	Micrometer, 25mm Travel, 20mm Head, 0.5mm Thread	$123.00	Out of Stock
02-800-005	Micrometer, 50mm Travel, 20mm Head, 0.5mm Thread	$209.00	Out of Stock
02-800-006	Micrometer, 50mm Travel, 20mm Head, 1.0mm Thread	$199.00	Out of Stock
02-504-011	Adjusting Screw, M5, 28.5 mm	$14.50	Yes
52-0050-000	Micrometer with Locking Nut, 50mm Travel, 20mm Head, 0.5mm Thread	$228.00	Yes
52-0044-000	Micrometer with Locking Nut, 25mm Travel, 20mm Head, 0.5mm Thread	$120.00	Yes
03-0206-002	Extension Cable (3m) for 10mm Linear Actuator, With Encoder	$33.00	Ships in 2-5 days
03-203-008	Open Loop Motor Controller	$230.00	Yes

Control Electronics and Software

Part #	Product Description	Price	In Stock
37-1047-000	Extension Cable (3m) for 13, 25, 50mm Linear Actuators with Encoder	$33.00	Yes
03-203-003	USB Motor Controller	$345.00	Yes
03-203-004	4 Port USB Hub	$11.50	Yes
03-0206-002	Extension Cable (3m) for 10mm Linear Actuator, With Encoder	$33.00	Ships in 2-5 days
03-203-008	Open Loop Motor Controller	$230.00	Yes

Laser Beam Switch

Part #	Product Description	Price	In Stock	QTYAdd to Cart
03-400-001	Highly Accurate Laser Beam Switch	$739.00	Yes
