Actuators/Adjusters

Ealing offers a variety of Motorized Micropositioning systems for precise remote positioning, which includes MotorDriver and EncoderDriver systems. Micrometers on existing manual micropositioning stages can be replaced with either a MotorDriver actuator or an EncoderDriver actuator providing cost effective, motorized, sub-micrometer control of the stage. MotorDriver products are for simple open-loop operation of the DC motor while the EncoderDriver products provide computer controlled closed-loop operation of the DC motor along with a rotary encoder. They can be driven by an ultra-precise USB positioning systems with resolutions of less than one micron.

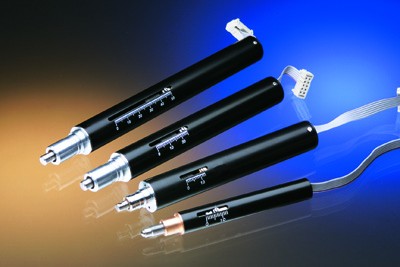

Motorized Linear Actuators, Encoder

Part #	Product Description	Price	In Stock
37-1187-000	10 mm Linear Actuator, With Encoder (fitting dia 6.0)	$871.50	Yes
37-1179-000	13 mm Linear Actuator, With Encoder (fitting dia 9.52)	$876.75	Yes
37-1062-000	25 mm Linear Actuator, With Encoder (fitting dia 12.70)	$805.35	Yes
37-1070-000	50 mm Linear Actuator, With Encoder (fitting dia 12.70)	$937.65	Yes
37-1047-000	Extension Cable (3m) for 13, 25, 50mm Linear Actuators with Encoder	$33.00	Yes
03-203-003	USB Motor Controller	$345.00	Yes
03-0206-002	Extension Cable (3m) for 10mm Linear Actuator, With Encoder	$33.00	Ships in 2-5 days

Motorized Linear Actuators

Part #	Product Description	Price	In Stock
37-0221-000	10 mm Travel Linear Actuator (fitting dia 6.0)	$616.35	Yes
37-0015-000	25 mm Travel Linear Actuator (fitting dia 12.70)	$537.60	Yes
37-0023-000	50 mm Travel Linear Actuator (fitting dia 12.70)	$537.60	Yes
37-0007-000	13 mm Travel Linear Actuator (fitting dia 9.52)	$616.35	Yes
37-9701-000	10 mm Linear Actuator (fitting dia 9.0)	$616.35	Out of Stock
03-203-003	USB Motor Controller	$345.00	Yes
03-203-008	Open Loop Motor Controller	$230.00	Yes

Micrometers

Part #	Product Description	Price	In Stock
02-800-003	Micrometer, 25mm Travel, 17mm Head, 0.5mm Thread	$103.00	Out of Stock
02-800-004	Micrometer, 25mm Travel, 20mm Head, 0.5mm Thread	$123.00	Out of Stock
02-800-005	Micrometer, 50mm Travel, 20mm Head, 0.5mm Thread	$209.00	Out of Stock
02-800-006	Micrometer, 50mm Travel, 20mm Head, 1.0mm Thread	$199.00	Out of Stock
52-0050-000	Micrometer with Locking Nut, 50mm Travel, 20mm Head, 0.5mm Thread	$228.00	Yes
52-0044-000	Micrometer with Locking Nut, 25mm Travel, 20mm Head, 0.5mm Thread	$120.00	Yes

Thumbscrew Micrometers

Part #	Product Description	Price	In Stock
02-504-006	Thumbscrew for TriRail Carrier (replacement)	$15.50	Yes
52-0026-000	Thumbscrew Actuator, 6.5 mm Travel	$21.00	Yes
02-504-007	Knurled Micrometer Screw, High Precision, M4, Locknut, 170 TPI, (Standard Head)	$30.00	Yes
02-504-008	Knurled Micrometer Screw, High Precision, M4, Locknut, 170 TPI (Compact Head)	$30.00	Yes
02-504-011	Adjusting Screw, M5, 28.5 mm	$14.50	Yes

Differential Adjustment Screws

Part #	Product Description	Price	In Stock	QTYAdd to Cart
02-504-009	Differential Screw, M14 x 0.5 Fine Pitch Thread	$169.00	Yes
02-504-010	Differential Screw, M18 x 0.5 Fine Pitch Thread	$188.00	Yes
