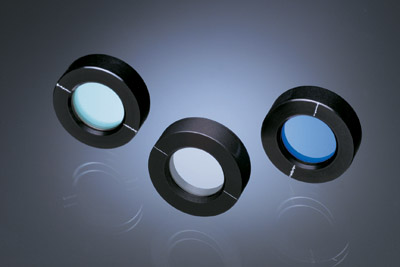

Waveplates

Applications for Half Waveplates include rotating the plane of polarization (e.g. in a laser), electro-optic modulation and as a variable ratio beamsplitter (when used in conjunction with a polarizing cube).

Waveplates are made from materials which exhibit birefringence. The velocities of the extraordinary and ordinary rays through the birefringent material vary inversely with their refractive indices. For the case of crystal quartz the extraordinary beam has a higher refractive index and therefore a slower velocity. For this reason, its direction is known as the ‘slow’ axis. Likewise, the direction of the ordinary beam is known as the ‘fast’ axis and is indicated by the marked lines on the mount.

Zero Order Wave Plates

Part #	Product Description	Price	In Stock
45-7663-000	670 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7697-000	780 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7705-000	808 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7721-000	830 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7739-000	850 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7754-000	1064 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7762-000	1300 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7770-000	1550 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes
45-7796-000	266 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7820-000	488 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7838-000	514 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7846-000	532 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7861-000	633 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7911-000	780 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7929-000	808 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7945-000	830 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7952-000	850 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7978-000	1064 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7994-000	1550 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
45-7655-000	650nm Wavelength, Zero Order Quarter Waveplate	$199.00	Yes
45-7811-000	405 nm Wavelength - Zero Order Half Waveplate	$195.00	Yes
01-507-001	1310 nm Wavelength - Zero Order Quarter Waveplate	$195.00	Yes

Multiple Order Waveplates

Part #	Product Description	Price	In Stock
45-6855-000	266 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6871-000	355 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6889-000	488 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6897-000	514 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6905-000	532 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6921-000	633 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6947-000	670 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6970-000	780 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-6988-000	808 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-7010-000	830 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-7016-000	850 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-7028-000	1064 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-7036-000	1300 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-7048-000	1550 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes
45-7093-000	488 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7101-000	514 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7119-000	532 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7135-000	633 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7184-000	780 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7192-000	808 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7226-000	830 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7234-000	850 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-7242-000	1300 nm Wavelength - Multiple Order Half Waveplate	$120.00	Yes
45-6881-000	405 nm Wavelength - Multiple Order Quarter Waveplate	$120.00	Yes

Clearance Waveplates

Part #	Product Description	Price	In Stock	QTYAdd to Cart
45-7283-000	532nm Wavelength, Quarter Waveplate, Mica (Unmounted)	$199.00 $99.50	Yes
45-7655-000	650nm Wavelength, Zero Order Quarter Waveplate	$199.00	Yes
