Opto-Mechanics

Ealing offers a wide range of precise opto-mechanical components and systems designed specifically with laser and photonics applications in mind. Our precision machine shops have many years of experience in the design and fabrication of optical mounting systems. Our applications engineers are ready to discuss your requirements and recommend the most suitable component to meet your application.

If you would like to use Ealing's opto-mechanical components in volume manufacturing situations, we will be pleased to provide you with a special quotation. We can build to meet your specific custom or OEM requirements.

Regardless of what your opto-mechanical requirements are, give us a call at 800-295-3220.

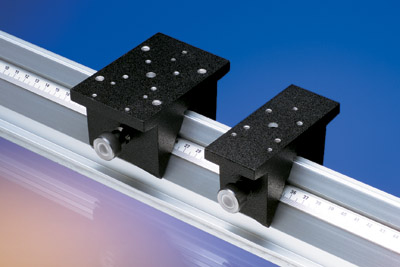

Optical Rails and Breadboards

Part #	Product Description	Price	In Stock
62-1888-000	Aluminum Plate Breadboard - 0.5 x 1ft (1/4-20)	$95.00	Yes
62-1896-000	Aluminum Plate Breadboard - 1 x 1ft (1/4-20)	$175.00	Ships in 3-5 Weeks
62-1904-000	Aluminum Plate Breadboard - 1 x 2ft (1/4-20)	$290.00	Yes
62-1912-000	Aluminum Plate Breadboard - 1 x 3ft (1/4-20)	$380.00	Ships in 3-5 Weeks
62-1920-000	Aluminum Plate Breadboard - 2 x 2ft (1/4-20)	$585.00	Yes
22-6886-000	Aluminum Triangular Optical Rail, 1⁄2 m	$139.00	Yes
22-6894-000	Aluminum Triangular Optical Rail, 1 m	$189.00	Yes
22-6928-000	Aluminum Triangular Optical Rail, 2 m	$259.00	Yes
53-3679-000	TriRail Carrier 40 mm wide, metric	$129.00	Yes
53-3687-000	TriRail Carrier 65 mm wide, metric	$155.00	Out of Stock
61-3679-000	TriRail Carrier 40 mm wide, inch	$129.00	Yes
61-3687-000	TriRail Carrier 65 mm wide, inch	$155.00	Yes
53-3885-000	TriRail Dovetail Stage 25 mm travel, metric	$149.00	Yes
61-3885-000	TriRail Dovetail Stage 25 mm travel, inch	$149.00	Yes
53-3893-000	Dovetail Stage Post Holder Adapter Plate, Universal	$34.50	Yes
53-3919-000	Dovetail Stage Vertical Adapter Plate, Universal	$34.50	Yes
24-1539-000	Subminiature Table Clamp, Optical Table, M6, 10/SET	$55.65 $27.83	Yes
24-1513-000	Subminiature Table Clamp, Optical Table, 1/4-20, 10/SET	$55.65 $27.83	Out of Stock
02-504-006	Thumbscrew for TriRail Carrier (replacement)	$15.50	Yes

Mounting Hardware

Part #	Product Description	Price	In Stock
61-9379-000	StablePillar Pedestal 0.5 in	$19.00	Yes
61-9387-000	StablePillar Pedestal 1.0 in	$19.00	Yes
61-9395-000	StablePillar Pedestal 1.5 in	$19.00	Yes
61-9403-000	StablePillar Pedestal 2.0 in	$19.00	Yes
61-9411-000	StablePillar Pedestal 3.0 in	$19.00	Yes
61-9437-000	StablePillar Pedestal 5.0 in	$32.00	Yes
53-9528-000	StablePillar Extender 150.0 mm	$34.00	Yes
61-9478-000	StablePillar Extender 1.5 in	$19.00	Yes
61-9486-000	StablePillar Extender 2.0 in	$19.00	Yes
61-9494-000	StablePillar Extender 3.0 in	$19.00	Yes
61-9502-000	StablePillar Extender 4.0 in	$29.00	Yes
61-9528-000	StablePillar Extender 6.0 in	$34.00	Yes
53-9544-000	StablePillar Fork Clamp 80 mm Long	$13.00	Yes
53-9551-000	StablePillar Fork Clamp 55 mm Long	$13.00	Yes
53-9569-000	StablePillar Circular Universal Clamp	$9.00	Yes
53-9577-000	StablePillar Button Clamp (set of two)	$10.00	Yes
53-1723-000	Half-inch Mounting Post 30 mm	$4.73	Yes
53-1731-000	Half-Inch Mounting Post 40 mm	$4.96	Yes
53-1749-000	Half-Inch Mounting Post 50 mm	$5.18	Yes
53-1756-000	Half-Inch Mounting Post 75 mm	$5.41	Yes
53-1764-000	Half-Inch Mounting Post 100mm	$5.86	Yes
53-1772-000	Half-Inch Mounting Post 150 mm	$6.76	Yes
53-1780-000	Half-Inch Mounting Post 200mm	$8.11	Yes
53-1806-000	Half-Inch Mounting Post 300 mm	$10.81	Yes
61-1723-000	Half-Inch Mounting Post 1 in	$4.73	Yes
61-1731-000	Half-Inch Mounting Post 1.5 in	$4.96	Yes
61-1749-000	Half-Inch Mounting Post 2 in	$5.18	Yes
61-1756-000	Half-Inch Mounting Post 3 in	$5.41	Yes
61-1764-000	Half-Inch Mounting Post 4 in	$5.86	Yes
61-1772-000	Half-Inch Mounting Post 6 in	$6.76	Yes
61-1780-000	Half-inch Mounting Post 8 in	$8.11	Yes
61-1806-000	Half-inch Mounting Post 12 in	$10.81	Yes
61-2036-000	Post Holder 1 inch Long 1/4-20 Thread	$7.02	Yes
61-2044-000	Post Holder 1.5 inch Long 1/4-20 Thread	$7.21	Yes
61-2057-000	Post Holder 2 inch Long 1/4-20 Thread	$7.69	Yes
61-2069-000	Post Holder 3 inch Long 1/4-20 Thread	$8.26	Yes
61-2077-000	Post Holder 4 inch Long 1/4-20 Thread	$9.16	Yes
61-2085-000	Post Holder 6 inch Long 1/4-20 Thread	$12.63	Yes
53-2036-000	Post Holder 25 mm Long M6 Thread	$7.02	Yes
53-2044-000	Post Holder 40 mm Long M6 Thread	$7.21	Yes
53-2057-000	Post Holder 50 mm Long M6 Thread	$7.69	Yes
53-2069-000	Post Holder 75 mm Long M6 Thread	$8.26	Yes
53-2077-000	Post Holder 100 mm Long M6 Thread	$9.16	Yes
53-2085-000	Post Holder 150 mm Long M6 Thread	$12.63	Yes
53-1681-000	Post Holder Base, Short Narrow	$9.00	Yes
53-1707-000	Post Holder Base, Wide	$12.00	Out of Stock
53-1913-000	Mounting Base, Universal M4/8-32	$7.30	Yes
53-2101-000	Right Angle Clamp, Half-inch posts	$28.00	Yes
53-3869-000	Low Cost Swivel Clamp, Dual 1/2 inch posts	$40.50	Yes
53-3778-000	Multi-purpose Swivel Clamp, 12.7 mm posts	$65.00	Yes
24-1539-000	Subminiature Table Clamp, Optical Table, M6, 10/SET	$55.65 $27.83	Yes
53-2176-000	Angled Table Clamp	$3.85 As low as: $3.39	Yes
53-2580-000	Thread Adapter M6 to 8-32	$5.50 As low as: $2.90	Yes
53-9536-000	Stable Pillar Location Disc Connector (10 Pack)	$5.00 $2.50	Yes
53-9540-000	Stable Pillar-45 Deg Mount	$82.50 $41.25	Yes
24-1513-000	Subminiature Table Clamp, Optical Table, 1/4-20, 10/SET	$55.65 $27.83	Out of Stock
02-400-001	Half-inch Mounting Post 50.8mm, Custom	$5.18 $4.14	Yes
02-402-001	Post Holder Base, Wide	$8.50	Yes

Mirror & Component Mounts

Part #	Product Description	Price	In Stock
53-2218-000	Kinematic Mirror Mount, 1 inch	$79.00	Yes
53-2630-000	Kinematic Mirror Mount, 1 inch, Hex Adjusters	$79.00	Out of Stock
53-2234-000	Kinematic Mirror Mount, 2 inch	$119.00	Yes
53-2648-000	Kinematic Mirror Mount, 2 inch, Hex Adjusters	$119.00	Out of Stock
53-2614-000	Kinematic Thin Optic Mount, 1 inch	$129.00	Yes
53-2622-000	Kinematic Thin Optic Mount, 2 inch	$149.00	Yes
53-2119-000	Kinematic Mirror Mount, 3 inch	$169.00	Yes
53-2127-000	Kinematic Mirror Mount, 4 inch	$229.00	Yes
37-4777-000	TopAdjust Mirror Mount, 1 Inch Square Post Mounted	$129.00	Yes
22-8643-000	TopAdjust Mirror Mount, 1 Inch Square Base Mounted	$139.00	Yes
37-4793-000	TopAdjust Mirror Mount, 2 inch Square Post Mounted	$149.00	Yes
22-8676-000	TopAdjust Mirror Mount, 2 inch Square Base Mounted	$159.00	Out of Stock
37-4801-000	TopAdjust Mirror Mount, 3 inch Square Post Mounted	$249.00	Yes
22-8684-000	TopAdjust Mirror Mount, 3 inch Square Base Mounted	$259.00	Yes
53-2432-000	TopAdjust Mirror Mount for 1.0 inch Round Optics	$119.00	Yes
53-4099-000	Low Cost Periscope	$329.00 $307.00	Yes
53-2804-000	Fixed Threaded Optic Holder 12.5 mm/0.5 inch Dia., Metric	$39.00	Yes
61-2804-000	Fixed Threaded Optic Holder 12.5 mm/0.5 inch Dia., Inch	$39.00	Out of Stock
53-2812-000	Fixed Threaded Optic Holder 25 mm/1 inch Dia., Metric	$39.00	Yes
61-2812-000	Fixed Threaded Optic Holder 25 mm/1 inch Dia., Inch	$39.00	Yes
53-2820-000	Fixed Threaded Optic Holder 50 mm/2 inch Dia., Metric	$39.00	Yes
61-2820-000	Fixed Threaded Optic Holder 50 mm/2 inch Dia., Inch	$39.00	Yes
53-3612-000	Polarizer Adapter for 25.4 mm Dia Cylindrical Optics	$94.00 As low as: $47.00	Yes
53-9775-000	Single 6 Position Modular Filter Wheel for 25.4 mm (1 inch) Diameter Filters	$145.00 As low as: $80.00	Yes
53-9759-000	Single 12 Position Modular Filter Wheel for 12.7 mm (0.5 inch) Diameter Filters	$215.00 As low as: $107.00	Yes
53-9783-000	Extra Wheel Kit for 6 Position Modular Filter Wheel	$105.00 $65.00	Yes
53-9791-000	Extra Wheel Kit for 12 Position Modular Filter Wheel	$110.00	Yes
53-2259-000	Kinematic Platform for Prisms and Beamsplitters	$64.00	Yes
53-2341-000	Tall Clamp Rod/Arm	$16.00	Out of Stock
37-0502-000	Rotary Stage, SubMini (Clearance)	$325.00 $162.50	Yes
53-1871-000	Variable Angle Mount for ∅14.8mm Diode Laser Modules, Metric	$47.00 $23.50	Yes
53-1970-000	RMS Mounting Adapter for 4-axis Precision Diode Mount	$27.50 $13.75	Yes
53-2325-000	V-Block Large, Universal	$42.90	Out of Stock
53-2757-000	TopAdjust Mirror Mount, RMS Adapter	$17.60 $8.80	Yes
53-3620-000	Polarizer Adapter for ∅31.75mm (1.25") Cylindrical Optics	$87.15 $43.58	Yes
61-1483-000	Adjustable HeNe Laser Mount, Inch	$159.00	Yes
61-1855-000	Variable Angle Mount for ∅9.5mm Diode Laser Module, Inch	$47.00 $23.50	Yes
61-1871-000	Variable Angle Mount for ∅14.8mm Diode Laser Module, Inch	$47.00 $23.50	Yes
61-2937-000	Variable Angle HeNe Laser Mount, Inch	$163.80 $81.90	Yes
22-8668-000	TopAdjust Mirror Mount, 1.5 inch Square Base Mounted	$159.00	Out of Stock
37-4785-000	TopAdjust Mirror Mount, 1.5 Inch Square Post Mounted	$149.00	Out of Stock
02-701-001	Adapter for 0.3” Optics	$21.00	Yes
53-2440-000	TopAdjust Mirror Mount for 1.5 inch Round Optics	$119.00	Yes

Apertures & Mounts

Part #	Product Description	Price	In Stock
53-2473-000	Mounted Iris Diaphragm, 12 mm Dia, Metric	$45.00	Yes
61-2473-000	Mounted Iris Diaphragm, 12 mm Dia, Inch	$45.00	Yes
53-2481-000	Mounted Iris Diaphragm, 25 mm Dia, Metric	$55.00	Yes
61-2481-000	Mounted Iris Diaphragm, 25 mm Dia, Inch	$55.00	Out of Stock
53-2499-000	Mounted Iris Diaphragm, 36 mm Dia, Metric	$68.00	Out of Stock
61-2499-000	Mounted Iris Diaphragm, 36 mm Dia, Inch	$68.00	Out of Stock
53-2507-000	Mounted Iris Diaphragm, 50 mm Dia, Metric	$117.00	Yes
61-2507-000	Mounted Iris Diaphragm, 50 mm Dia, Inch	$117.00	Out of Stock
53-1988-000	Unmounted Iris Diaphragm, 12mm Max Aperture	$37.00	Yes
53-1996-000	Unmounted Iris Diaphragm, 25mm Max Aperture	$45.00	Out of Stock
53-2002-000	Unmounted Iris Diaphragm, 36mm Max Aperture	$58.00	Out of Stock
53-2010-000	Unmounted Iris Diaphragm, 50mm Max Aperture	$104.00	Yes
74-1137-000	Rectangular Aperture, Universal (8-32, M4)	$249.00	Yes
61-1137-000	Rectangular Aperture, Inch	$249.00	Please see 74-1137-000
43-5347-000	∅16 mm Mount, 2.0 μm Aperture, UV/Visible Laser Pinholes	$95.00	Yes
43-5487-000	∅25 mm Mount, 2.0 μm Aperture, UV/Visible Laser Pinholes	$95.00	Out of Stock
43-5362-000	∅16 mm Mount, 10.0 μm Aperture, UV/Visible Laser Pinholes	$80.00	Yes
43-5503-000	∅25 mm Mount, 10.0 μm Aperture, UV/Visible Laser Pinholes	$80.00	Yes
43-5370-000	∅16 mm Mount, 15.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5388-000	∅16 mm Mount, 20.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5537-000	∅25 mm Mount, 25.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5404-000	∅16 mm Mount, 35.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5545-000	∅25 mm Mount, 35.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5412-000	∅16 mm Mount, 50.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5552-000	∅25 mm Mount, 50.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5578-000	∅25 mm Mount, 70.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5461-000	∅16 mm Mount, 100.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5602-000	∅25 mm Mount, 100.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5479-000	∅16 mm Mount, 200.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5610-000	∅25 mm Mount, 200.0 μm Aperture, UV/Visible Laser Pinholes	$74.00	Yes
43-5636-000	∅16 mm, 10.0 μm, Infrared Laser Pinhole	$98.00	Yes
43-5776-000	∅25 mm, 10.0 μm, Infrared Laser Pinhole	$98.00	Yes
43-5644-000	∅16 mm, 25.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5784-000	∅25 mm, 25.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5651-000	∅16 mm, 35.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5685-000	∅16 mm, 70.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5693-000	∅16 mm, 80.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5842-000	∅25 mm, 90.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5701-000	∅16 mm, 90.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5719-000	∅16 mm, 100.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5859-000	∅25 mm, 100.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5727-000	∅16 mm, 200.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5867-000	∅25 mm, 200.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5875-000	∅25 mm, 300.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5743-000	∅16 mm, 400.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5883-000	∅25 mm, 400.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5750-000	∅16 mm, 500.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5891-000	∅25 mm, 500.0 μm, Infrared Laser Pinhole	$72.00	Yes
43-5180-000	∅25 mm Mount, 2.5 μm Aperture, Precision Pinhole	$79.00	Yes
43-5024-000	∅16 mm Mount, 5.0 μm Aperture, Precision Pinhole	$65.00	Out of Stock
43-5198-000	∅25 mm Mount, 5.0 μm Aperture, Precision Pinhole	$65.00	Yes
43-5206-000	∅25 mm Mount, 10.0 μm Aperture, Precision Pinhole	$54.00	Yes
43-5040-000	∅16 mm Mount, 12.5 μm Aperture, Precision Pinhole	$54.00	Yes
43-5214-000	∅25 mm Mount, 12.5 μm Aperture, Precision Pinhole	$54.00	Yes
43-5222-000	∅25 mm Mount, 15.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5230-000	∅25 mm Mount, 17.5 μm Aperture, Precision Pinhole	$49.00	Yes
43-5073-000	∅16 mm Mount, 25.0 μm Aperture, Precision Pinhole	$49.00	Out of Stock
43-5248-000	∅25 mm Mount, 25.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5081-000	∅16 mm Mount, 35.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5255-000	∅25 mm Mount, 35.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5099-000	∅16 mm Mount, 50.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5263-000	∅25 mm Mount, 50.0 μm Aperture, Precision Pinhole	$49.00	Out of Stock
43-5289-000	∅25 mm Mount, 100.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5305-000	∅25 mm Mount, 400.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5149-000	∅16 mm Mount, 600.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5313-000	∅25 mm Mount, 600.0 μm Aperture, Precision Pinhole	$49.00	Out of Stock
43-5321-000	∅25 mm Mount, 800.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5164-000	∅16 mm Mount, 1000.0 μm Aperture, Precision Pinhole	$49.00	Yes
43-5925-000	10 μm Wide, Precision Optical Slit	$235.00	2-3 Week Lead Time
43-5941-000	25 μm Wide, Precision Optical Slit	$235.00	2-3 Week Lead Time
43-5966-000	50 μm Wide, Precision Optical Slit	$235.00	Out of Stock
43-5974-000	100 μm Wide, Precision Optical Slit	$235.00	2-3 Week Lead Time
43-5982-000	200 μm Wide, Precision Optical Slit	$235.00	2-3 Week Lead Time
43-6022-000	5 μm Wide, Precision Air Slit	$101.00	Yes
43-6030-000	10 μm Wide, Precision Air Slit	$101.00	2-3 Week Lead Time
43-6048-000	25 μm Wide, Precision Air Slit	$101.00	Yes
43-6055-000	50 μm Wide, Precision Air Slit	$74.00	2-3 Week Lead Time
43-6063-000	75 μm Wide, Precision Air Slit	$74.00	Yes
43-6071-000	100 μm Wide, Precision Air Slit	$74.00	Yes
43-6089-000	200 μm Wide, Precision Air Slit	$74.00	Yes
43-6097-000	300 μm Wide, Precision Air Slit	$74.00	2-3 Week Lead Time
43-6105-000	400 μm Wide, Precision Air Slit	$74.00	Yes
43-6113-000	500 μm Wide, Precision Air Slit	$74.00	2-3 Week Lead Time
02-707-003	Unmounted Iris Diaphragm, 36mm Max Aperture	$58.00	Out of Stock
