Manual Linear Stages
Manual Linear Stages
•Accurate System Positioning
•German-Engineered Micrometers
•Hardened Steel Components

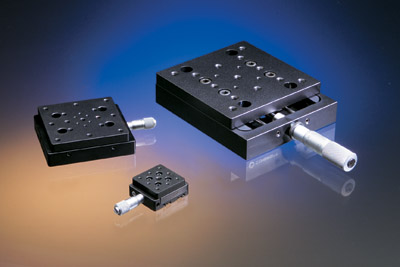

Ealing offers many different Linear Stages, to be selected by range of travel and size of positioner platform. Our linear stages are constructed from a combination of steel and aluminum to provide a light weight stage with performance approaching that of an all steel design. The hardened steel ball bearing slides are individually adjusted and tested during assembly.
The Ealing linear manual translation stages are supplied with either a high resolution thumbscrew or a precision micrometer with a calibrated scale, and can be motorized by replacing the micrometer with a linear actuator or by choosing one of our motorized stage packages.
| Part # | Product Description | Price | In Stock | QTYAdd to Cart |
|---|---|---|---|---|
| 72-0014-001 |
6.5 mm Travel, Thumbscrew Actuator, Metric (30mm Wide) |
$188.00 |
Yes | |
| 72-0006-000 |
6.5 mm Travel, Micrometer Actuator, Metric (30mm Wide) |
$230.00 |
Yes | |
| 72-0030-000 |
6.5 mm Travel, Thumbscrew Actuator, Metric Top Plate (30mm wide) |
$207.90 |
Yes | |
| 72-0022-000 |
6.5 mm Travel, Micrometer Actuator, Metric Top Plate (30mm Wide) |
$252.00 |
Yes | |
| 74-0006-000 |
12.7 mm Travel, Thumbscrew Actuator, Metric |
$278.00 |
Yes | |
| 74-0014-000 |
6.5 mm Travel, Micrometer Actuator, Metric |
$337.00 |
Yes | |
| 61-0006-000 |
12.7 mm Travel, Thumbscrew Actuator, Inch |
$278.00 |
Yes | |
| 61-0014-000 |
6.5 mm Travel, Micrometer Actuator, Inch |
$337.00 |
Yes | |
| 74-3125-000 |
12.7 mm Travel, Thumbscrew Actuator, Metric Top Plate |
$327.00 |
Yes | |
| 74-3158-000 |
6.5 mm Travel, Micrometer Actuator, Metric Top Plate |
$358.00 |
Yes | |
| 61-3125-000 |
12.7 mm Travel, Thumbscrew Actuator, Inch Top Plate |
$327.00 |
Yes | |
| 61-3158-000 |
6.5 mm Travel, Micrometer Actuator, Inch Top Plate |
$358.00 |
Yes |
| Part # | Product Description | Price | In Stock | QTYAdd to Cart |
|---|---|---|---|---|
| 53-0303-000 | 25 mm Travel, Micrometer Actuator, End Driven, Metric |
$355.00 |
Yes | |
| 74-3182-000 |
25 mm Travel, Micrometer Actuator, End Driven, Metric Top Plate |
$385.00 |
Out of Stock |
|
| 61-3182-000 |
25 mm Travel, Micrometer Actuator, End Driven, Inch Top Plate |
$385.00 |
Yes | |
| 74-3190-000 |
25 mm Travel, Micrometer Actuator, Side Driven, Metric Top Plate |
$385.00 |
Yes | |
| 61-3190-000 |
25 mm Travel, Micrometer Actuator, Side Driven, Inch Top Plate |
$385.00 |
Yes | |
| 02-804-002 | 25 mm Travel, Micrometer Actuator (Non-Locking), Side Driven, Metric Top Plate |
$349.00 |
2-4 Week Lead Time |
| Part # | Product Description | Price | In Stock | QTYAdd to Cart |
|---|---|---|---|---|
| 53-0329-000 | 50 mm Travel, Micrometer Actuator, End Driven, Metric |
$650.00 |
Yes | |
| 74-3208-000 |
50mm Travel, Micrometer Actuator, End Driven, Metric Top Plate |
$694.00 |
Out of Stock |
|
| 61-3208-000 |
50mm Travel, Micrometer Actuator, End Driven, Inch Top Plate |
$694.00 |
Out of Stock |
|
| 74-3216-000 |
50 mm Travel, Micrometer Actuator, Side Driven, Metric Top Plate |
$735.00 |
Out of Stock |
|
| 61-3216-000 |
50 mm Travel, Micrometer Actuator, Side Driven, Inch Top Plate |
$735.00
As low as:
$735.00
|
Out of Stock |
